| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | kwayt |
| إصدار الشهادات: | SGS,ISO |
| رقم الموديل: | 60 مم |
| الحد الأدنى لكمية: | 500 جهاز كمبيوتر |
|---|---|
| الأسعار: | 1.0-1.5mm |
| تفاصيل التغليف: | السائبة أو الكرتون |
| وقت التسليم: | 5-8 أيام |
| القدرة على العرض: | 100000 جهاز كمبيوتر في الشهر |

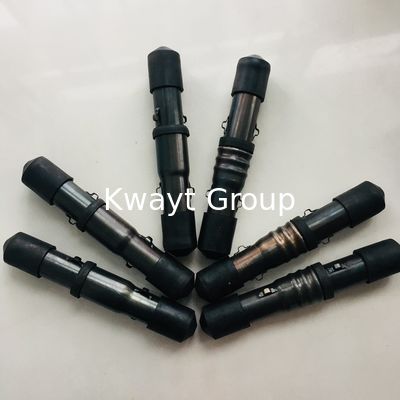

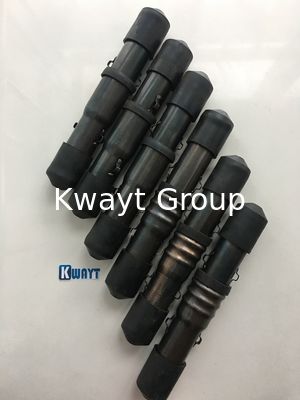

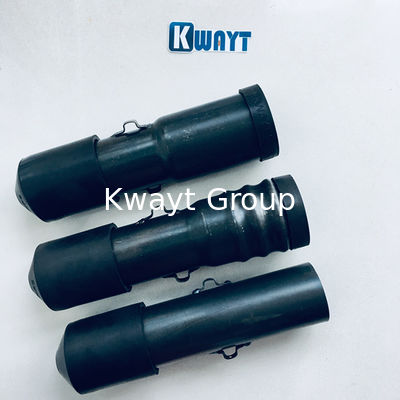

| Commodity | Sonic Tubes for CSL testing |
| OD | 50mm,53mm,57mm,60mm,100mm |
| Thickness | 1-2mm |
| Material | Q195 etc. |
| Length | 5.8m |
| Certification | TUV,ISO |
| type | press-clamp type, push-fit type,threaded type,flanged type |
| standard | ASTM/BS/GB etc |
| Material | Q195 etc |
| Color | black |
| End finish | plain |
| Surface treatment | PE or oiled or mill varnish |
Position splice
• No wastage – standard lengths
• No Electricity/Welding/Threading
• Push-fit assembly
• Fast & Light handling by workers
• Easy fixing to rebar cage
• No weather limitations
• Patented & designed for sonic testing
• 100% tested in factory
• Easy visual inspection on site
• Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
Sonic pipe , is dedicated for sonic test applications. They are specially designed to be encased in foundations
such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by
ultrasonic waves.
Sonic tube is the Push-Fit SYSTEM available on the market dedicated for sonic test applications.
The concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.
Application of sonic tube:
|
